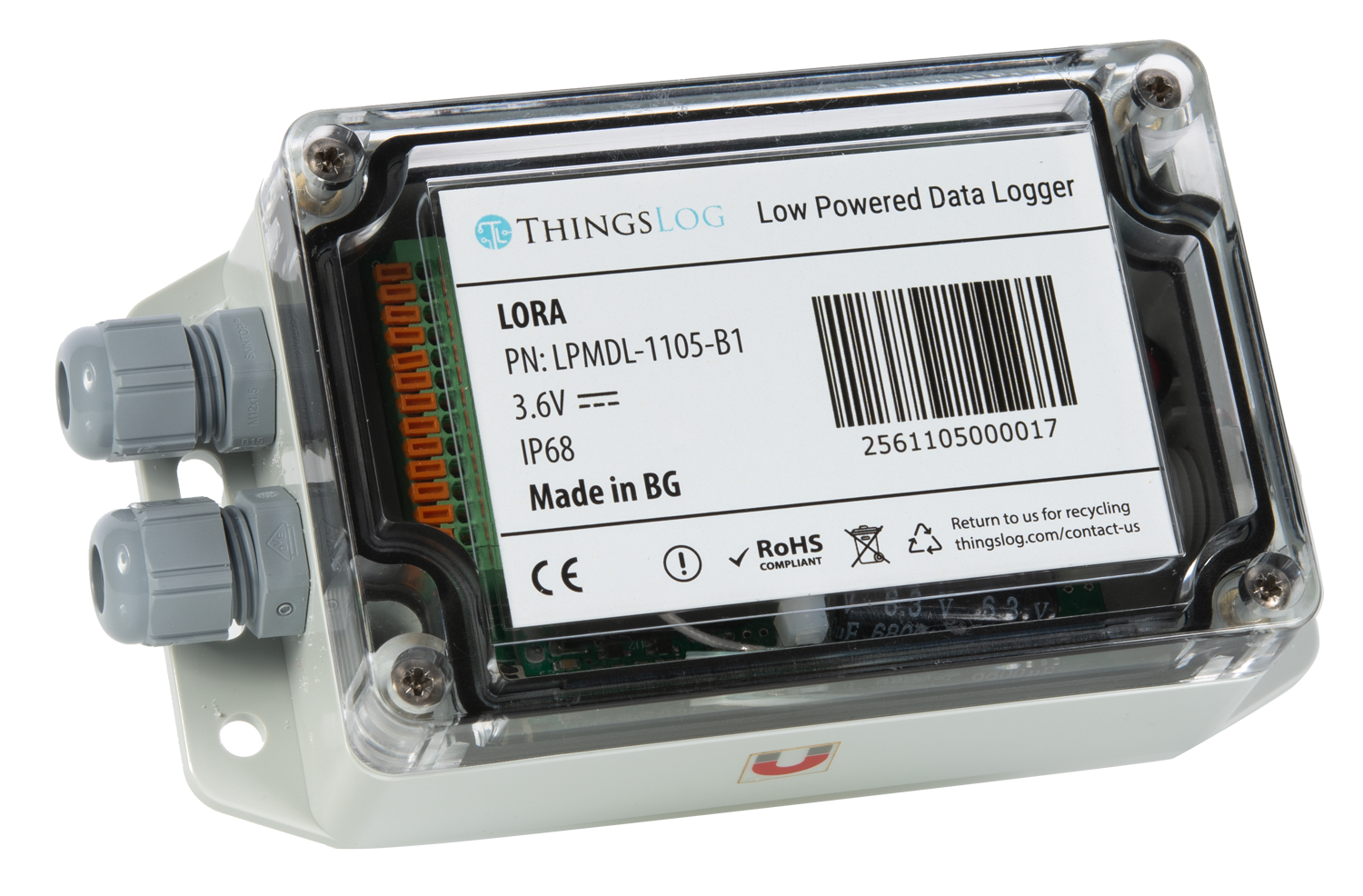

ThingsLog Low Power LoRa Data Loggers
Higly configurable LoRa data logger for pulse counting and analog reading
ThingsLog Low Power LoRa Data Loggers provide reliable, battery-powered remote monitoring and meter reading across industries. Ideal for tracking water flow, pressure, levels, temperature, and energy usage, all seamlessly managed via the ThingsLog Cloud Platform.
Global frequency range
Link budget 158dB for long distance application
Data transmission over LoRa/LoRaWAN network with up to 15 km of reach
2 pulse metering inputs
4 analog inputs 0-3V or 4-20mA
i2C bus port pre-integrated with selected sensors
16 bit ADC / precision 0.01%
Option for 24-bit ADC, with an onboard low-noise programmable gain amplifier
Option for step up convertor up to 12V
Alarm inputs /Relay outputs
EEPROM Option
Power supply options: 3.6V LiS02 battery, external power supply or embedded solar PV panel
Battery life of 25000 transmissions in low power mode
Configurable metering and transmission
Over-the-Air reconfiguration
Firmware update
IP68 level of protection
Data presented on ThingsLog platform
Possibility for REST API integration
Key Benefits
of ThingsLog Low Power LoRa Data Logger
Low power
Just 6uA in sleeping mode! Able to work long years on batteries!
Certified
CE certified – comply with European Safety, LVD, and EMC directives!
Versatile
Low Power, solar panel powered or electricity powered data logger with multiple configuration options .
Configurable over the air
Supports remote configuration over the AiR through the ThingsLog platform!
Documented
Well-documented product used by many utilities and enterprises!
Global Mobile offering
Comes with GPRS/4G global roaming SIM card
Well protected
Has IP68 level of moisture and dust protection
Upgradable
Stick to your current firmware or upgrade to a newer more capable version.
Alarms in low power
Instant alarms in low-power mode in case of abnormal consumption, leak, high/low value, etc.
How ThingsLog Delivers Flexible, Customizable Monitoring Systems
We work “order to configure”, which means that we customize our loggers to your use case.
This makes our delivery time 30 working days for 100+ devices and 10 working days for a sample delivery.
More information on how we deliver and how we price is available here.
ThingsLog Platform
All ThingsLog Low Power LoRa Data Loggers connect effortlessly to the ThingsLog Cloud Platform, giving you full control over device setup, remote monitoring, and data management—all in one place. Read more about the platform here.
